Ameson |
|
| |
|
|
| |
Bespoke
Loudspeaker enclosures |
|
| |
|
|
| |
Cabinet
production ceased in 2009 |
|
| |
|
|
| |
Following
notes and pictures are for information and interest only |
|
| |
|
|
| |
PREVIOUS
NOTES
|
|
| |
|
|
| |
These are
generally made from 12mm, 15mm, or 18mm Birch plywood, with MDF or Birch
plywood baffles. Usual choice of coverings, styles and pipings. Again, hand
cut, assembled and wired. Drive units used are Celestion Century, Century
Vintage, Blue, Vintage 30, 70/80, G12H, Classic Lead 80, Rocket 50. We aso
use Eminence Loudspeakers who now offer a huge range of (very good) dedicated
guitar speakers for particular rock applications if you can actually work
out exactly which model is right for you (Red Fang, Screamin' Eagle, Private
Jack, Swamp Thang, etc. etc... the mind boggles). FANE International now
also offer some very good units. After exhaustive tests we have adopted
the NEO magnet Celestion Century as our standard loudspeaker. Not the cheapest
but fabulous sound, great efficiency, and light weight. (NB. The Celestion
"Alnico Blue" speaker is also excellent but with only 15 Watts
honest handling power it is is only suitable in multiples of four with our
50 watt unit - then consider the price - but what a sound...) Other popular
cabs include: |
|
| |
|
|
| |
Ameson
112X |
|
| |
A traditional
open back 1 x 12" cabinet. With Celestion Classic Lead 80 for example
it has a punchy open sound, and is suitable for recording or small gigs.
Power handling 80 Watts rms.
Dimensions:
22.75"(W)
x 17"(H) x 9"(D). Weight with Celestion Classic Lead 80 - 12Kg. |
|
| |
|
|
| |
Ameson
210X |
|
| |
A traditional
open back 2 x 10" cabinet. With Eminence Legend 102s for example it
has a nice compressed bluesy sound, and is great for recording or small
gigs. Power handling 40 Watts rms. Dimensions:
22.75"(W)
x 17"(H) x 9"(D). Weight with 2 x Legend 102's - 11Kg. |
|
| |
|
|
| |
Ameson
212X |
|
| |
A traditional
open back 2 x 12" cabinet. With Celestion Century speakers it has a
really pure hot guitar tone, and the sheer volume - even driven with our
50 watt amplifier- is astounding. Power handling 140 Watts rms.
Same size and proportions as AC30. Dimensions:
27"(W)
x 20"(H) x 10"(D). Weight with 2 x Celestion Century's - 17
Kg. |
|
| |
|
|
| |
 |
|
| |

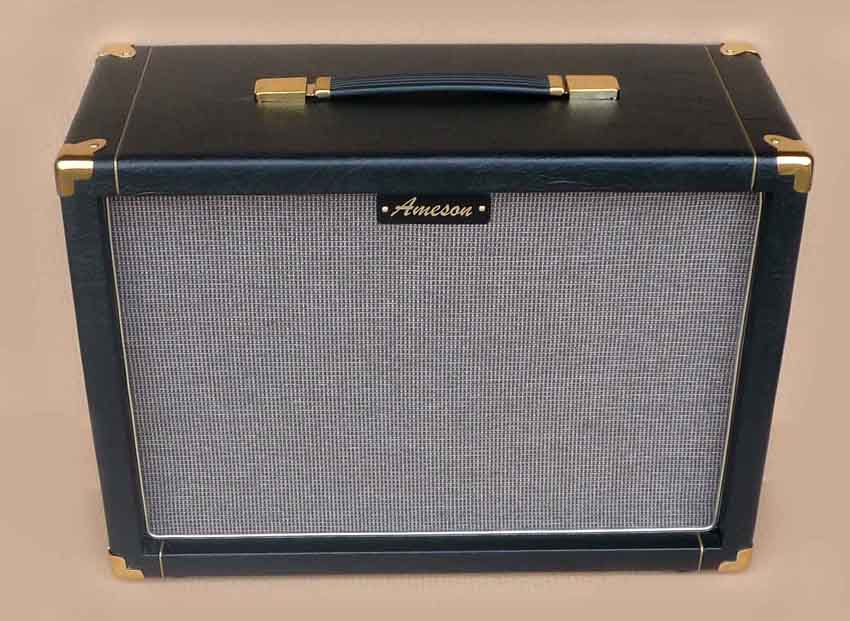

Front
View - Ameson 112X/210X/212X in standard leathergrain finish |
|
| |
|
|
| |
 |
|
| |

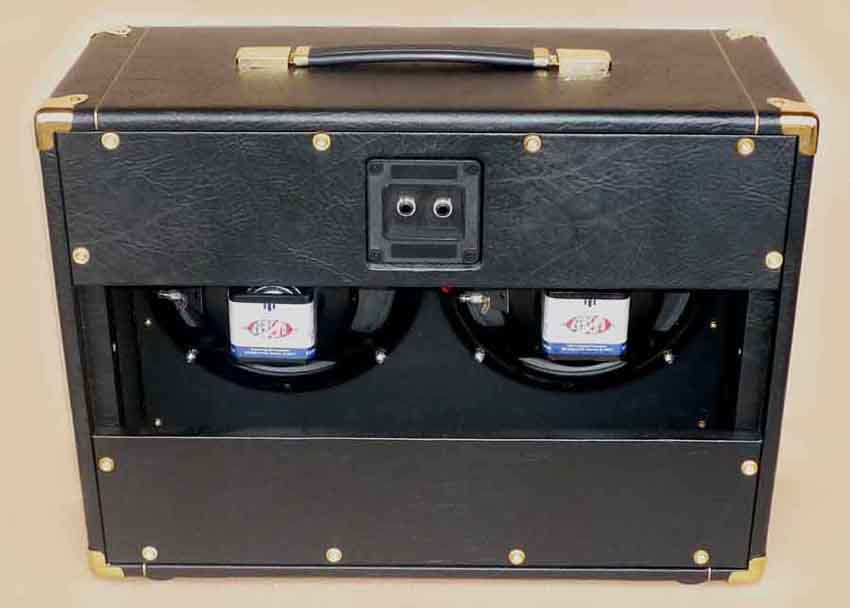

Ameson
210X/112X/212X Back view - shown with Eminence Legend 102's |
|
| |
|
|
| |
Ameson
412AX |
|
| |
|
|
| |
A traditional
angled closed back 4 x 12" cabinet. Minimal 412 dimensions for ease
of handling and tight bottom end response. Even with basic Celestion 70/80
speakers it has a really convincing clear and efficient (i.e. LOUD) SPL
output, and is perfect for larger gigs. Power handling 250 Watts rms.
Comes with castors... The 412BX is the straight version.
Dimensions:
28"(W)
x 28"(H) x 14"(D). Weight with Celestion 70/80- 42Kg. |
|
| |
|
|
| |
 |
|
| |

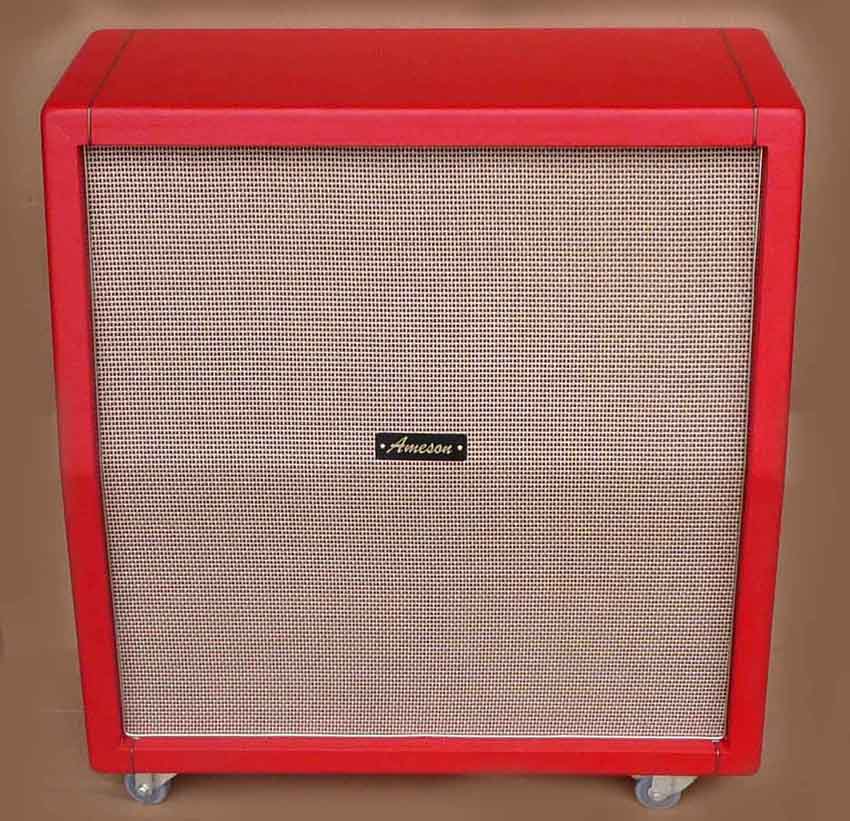

Ameson
412AX trimmed in 1960's Red Rexine - Front View |
|
| |
|
|
| |
BASS
GUITAR CABINETS |
|
| |
|
|
| |
We also made
a range of cabinets to complement our Bass Amplifiers. They were: |
|
| |
|
|
| |
115B - a single
1 x 15" cabinet with a choice of drive units |
|
| |
210HB - a
2 x 10" plus horn midtop cabinet also suitable for full range use in
smaller venues |
|
| |
215B - a 2
x 15" cabinet with a choice of drive units |
|
| |
410B - a 4
x 10" cabinet with a choice of drive units |
|
| |
|
|
|
This
webpage will remain active for reference for some time.
|
|
| |
|
|
| |
|
|
